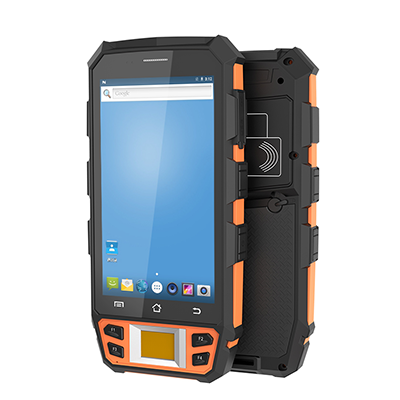

Built-in RFID Reader C5000

C5000
Android 7 0-3m reading disrance RFID reader with fingerprint scanner
Dual-frequency WIFI, High-speed Performance
Dual-frequency WIFI of 2.4GHz/5GHz shall provide the high-level experience and stable performance.
High-speed&Accurate Barcode Scanner
Professional barcode scanner of Honeywell&Zebra shall provide accurate&fast reading experience which meets different tough environment including dirty/defective barcodes.
Accurate Fingerprint Identification
Capacitive and inductive fingerprint identification module can be built in to support fingerprint input image processing, fingerprint comparison, fingerprint deletion and other operations.
Ultimate RFID Reader/Writer
Ideal built-in RFID reader including LF125KHz/LF134.2KHz/HF/UHF shall satisfy comprehensive projects with different requirements.
C5000 technical specifications
configuration parameter
  • processor

    High speed quad core 64 bit

    1.3 GHz

  • system



    Android 7.0

  • Store

    2GB +16GB(Standard configuration)



  • monitor

    5″(Resolution 1280×720)

    Capacitive touch screen

  • Key

    There are 2 scan keys, 1 power key,

    1 volume key on the side



  • Indicating sensor

    Network indicator,

    Charging indicator



  • Battery

    The battery is a 3.8V, 4350mAh polymer lithium battery. The battery can be disassembled and replaced by itself, which is convenient to expand the service life of the equipment

  • Camera

    Rear 8 megapixel with flash

    and auto focus



  • Navigation and positioning

    GPS (AGPs), Beidou navigation,

    error range ± 5m

  • extend

    Support 128GB

    Micro T card

  • Interface

    High speed USB2.0 equipment end interface,

    3.5 stick plug charging port

  • weight

    About400g(Including battery)



  • Expansion Slots

    1 SIM card slot,

    2 PSAM card slot (optional)





  • work environment

    working temperature:-20℃~+50℃

    Storage temperature:-20℃~+70℃

    relative humidity:-5%~95%(No condensation)

    Degree of protection:IP65

  • ID card collection

    Offline collection and identification

    of second-generation ID cards

    for identification



  • Fingerprint acquisition

    TCS1 fingerprint

    FBI fingerprint authentication

  • Bar code acquisition

    Scan engine:Zebra-SE4710/ME5600/ME5800/Honeywell-N3603/NLS-N1/Honeywell-N6703/others

    Identify barcode type and CMOS accuracy(≥ 3mil Code128, UCC/EAN-128, AIM-128, EAN-8, JAN-8, EAN-3,ISBN/ISSN, UPC-E, UPC-A,

    INTERLEAVE2/5,ITF-6,ITF-14,DEUTSCHE14,DEUTSCHE12,COOP25,MATRIX2/5,INDUSTRIAL2/5,STANDARD25,CODE39,CODABAR/NW7,CODE93,CODE11,PLESSEY,MSI/PLESSEY,GS1DATABAR /PDF-417,QRCODE,DATA MATRIX, Hanxin code etc.

  • telecommunications

    WiFi: 2.4G/5gG dual band, conforming to IEEE802.11A/B/GN/ACA

    2g:GSM/GPRS/Edge(850/900/1800/1900MHz)

    3g:WCDMA(850/1900/2100MHz);

    4g:TDD-LTE(B38/ B39/B40/ B41)FDD-LTE(B1/ B2/B3/B4/B7/B17/B20) VoLTE / ViLTE:support

    Bluetooth:Bluetooth specification V2.1+ EDR,3.0+ HS and
    V4.1+ HS compliant



  • NFC

    working frequency:13.56MHz

    Protocol standard:ISO14443A/B ,ISO15693, NFC-IP1,NFC-IP2 etc

    Reading and writing distance: 3-5cm (related to label type and environment)

  • Custom extension

    433MHz, infrared temperature measurement, vibration measurement,

    precise positioning and other modules

    Optional Accessories

    Charging base, battery, power adapter,

    data cable, hand strap
